Water Bottle Filling Machine Manufacturer & Supplier In India
Rinsing Filling Capping (RFC) Water Bottle Machine Details
The packaged drinking water industry in India is growing rapidly, demanding efficient, hygienic, and high-speed bottling solutions. Technogen Enterprise is a trusted water bottle filling machine manufacturer in India, offering advanced RFC (Rinsing-Filling-Capping) systems for seamless water packaging operations.
Our Automatic RFC Water Bottle Machine is designed to deliver precise filling, hygienic processing, and reliable capping in a single integrated system. Ideal for mineral water plants, packaged drinking water units, and beverage companies, this machine ensures high productivity while maintaining strict quality standards.
Product Description

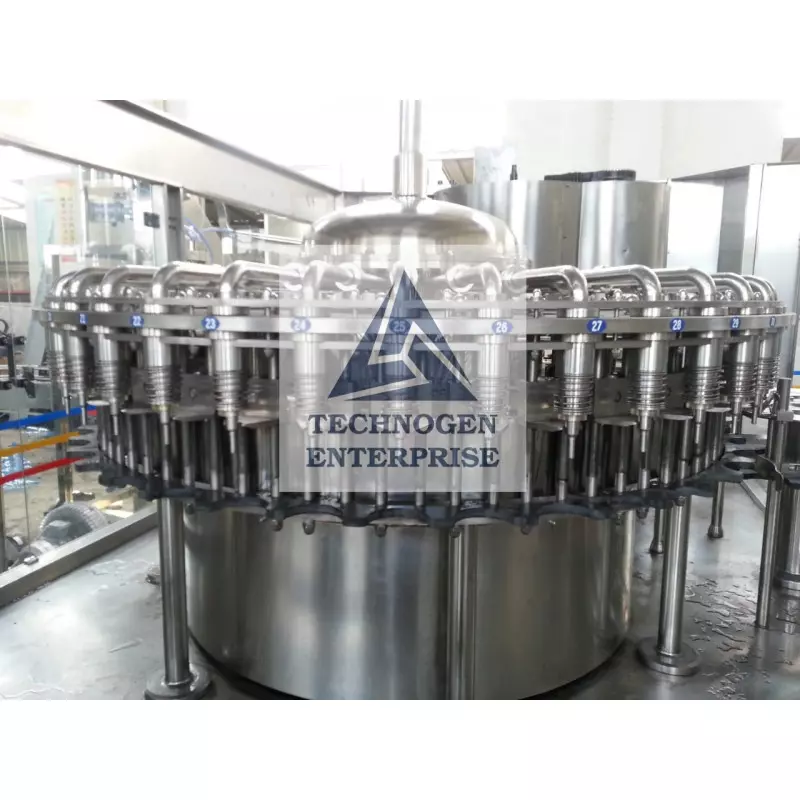

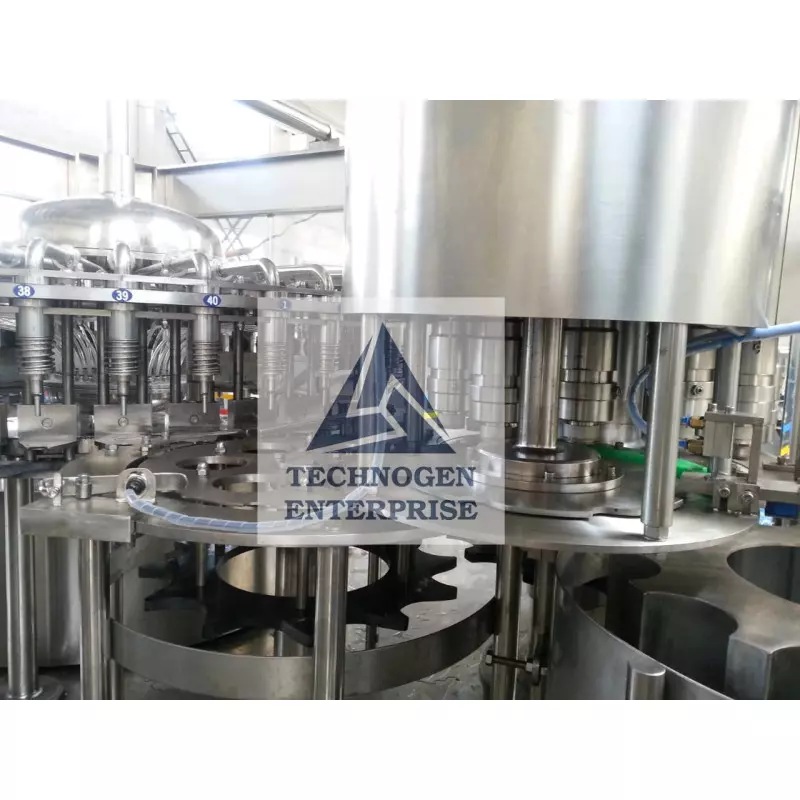

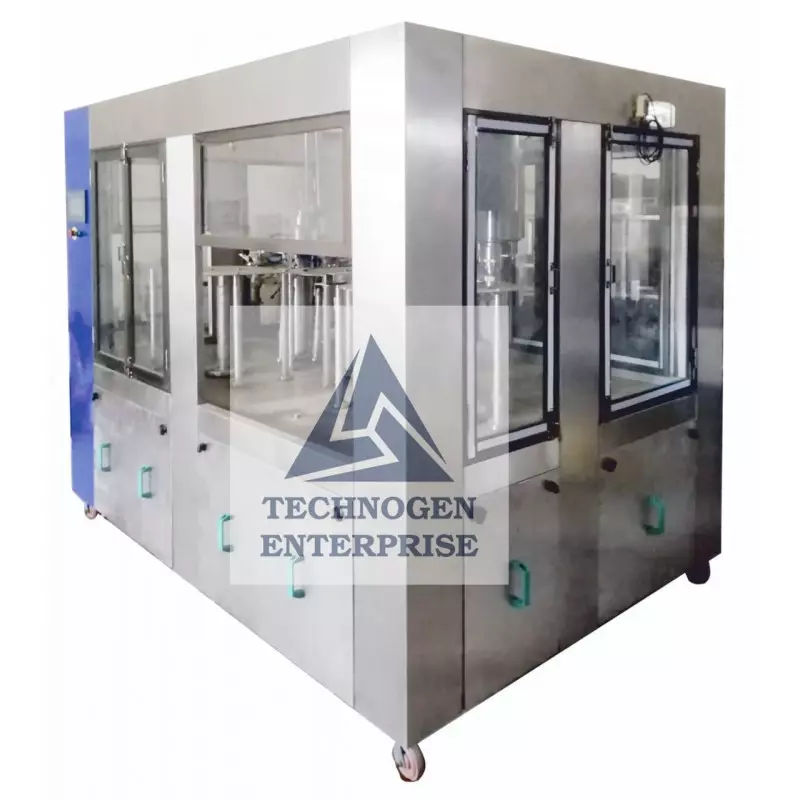

The RFC Water Bottle Filling Machine is a fully automatic monoblock system that integrates rinsing, filling, and capping into one synchronized operation. It is designed for handling 100 ml to 1000 ml bottles, making it suitable for various packaging formats.

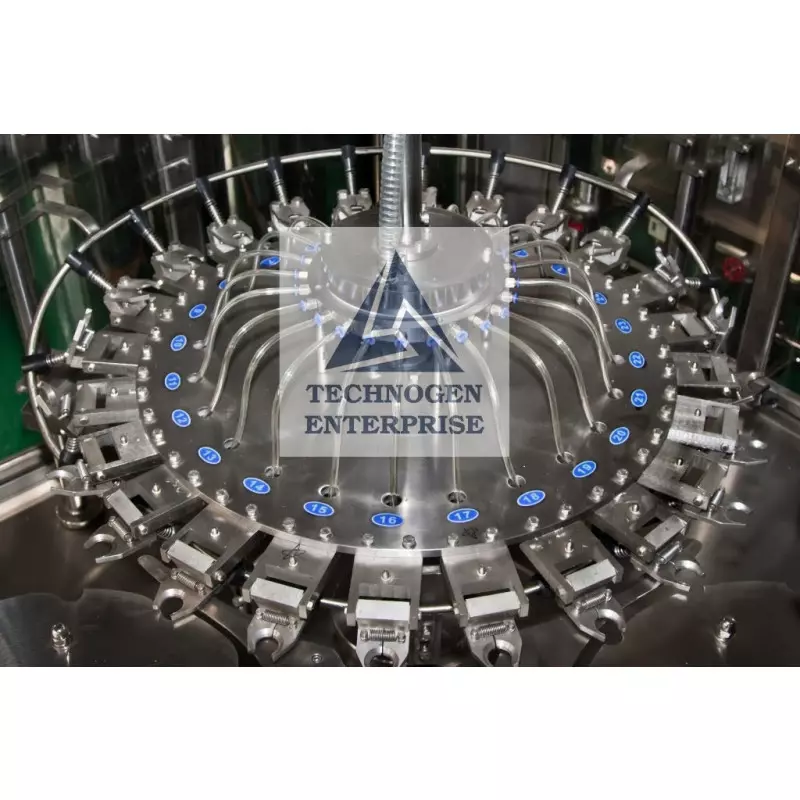

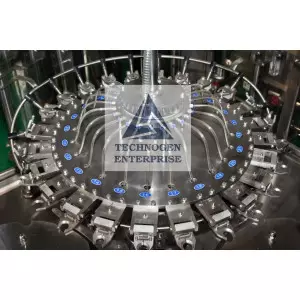

The machine uses advanced rotary technology and neck-holding mechanisms to ensure smooth bottle movement and accurate filling. With features like No Bottle – No Rinse – No Fill – No Cap, it minimizes wastage and enhances operational efficiency.
Additionally, the system is equipped with an air blow conveyor for smooth bottle feeding and compatibility with downstream equipment such as labeling machines and shrink tunnels, making it a complete bottling solution.
Key Features & Benefits
- 3-in-1 RFC Monoblock System
Integrated rinsing, filling, and capping for efficient workflow - High Production Capacity
Output ranging from 20 to 90 bottles per minute - Accurate Filling System
Ensures consistent fill levels with ±1% accuracy - Rotary Neck Holding Technology
Secure bottle handling during operation - No Bottle – No Operation System
Prevents wastage and improves efficiency - Air Blow Conveyor System
Smooth bottle loading and synchronization - Magnetic Hysteresis Capping Heads
Ensures secure and reliable sealing - Pick & Place Screw Capping Mechanism
100% accurate cap placement - Variable Frequency Drive (VFD)
Adjustable speed for different production needs - Compact & Heavy-Duty Construction
Stable, vibration-free performance - Easy Cleaning & Maintenance
Openable nozzles for quick access
Technical Specifications
| Model | TGRFC-24 | TGRFC-30 | TGRFC-40 | TGRFC-60 | TGRFC-90 |
|---|---|---|---|---|---|
| Output (1L Bottle) | 24 BPM | 30 BPM | 40 BPM | 60 BPM | 90 BPM |
| Filling Accuracy | ±1% | ±1% | ±1% | ±1% | ±1% |
| Filling Range | 100 ml – 1000 ml | 100 ml – 1000 ml | 100 ml – 1000 ml | 100 ml – 1000 ml | 100 ml – 1000 ml |
| Rinsing Heads | 4 | 6 | 8 | 12 | 18 |
| Filling Heads | 4 | 6 | 8 | 12 | 18 |
| Capping Heads | 2 | 3 | 4 | 6 | 6 |
| Power Supply | 440V, 3 Phase, 50 Hz | ||||
| Motor Power | 2 HP | 2.5 HP | 3 HP | 3 HP | 4 HP |
| Air Conveyor | 7 ft | 8 ft | 9 ft | 9 ft | 10 ft |
Industries Served
Our RFC water filling machines are widely used across key Indian sectors:
- Packaged Drinking Water Plants
- Mineral Water Manufacturing Units
- Beverage Industry
- Contract Bottling Companies
- Small & Large Scale Water Plants
Applications
- Packaged drinking water bottling
- Mineral water filling
- PET bottle water packaging
- High-speed bottling lines
- Integrated packaging systems
Why Choose Technogen Enterprise
- Leading Manufacturer, Supplier & Exporter in India
- Specialized in Water Bottling Machinery
- Made in India with Global Quality Standards
- Custom Models for Different Capacities
- Competitive Pricing with High ROI
- Reliable Performance & Low Maintenance
- Quick Spare Parts Availability
We deliver machines that ensure maximum efficiency, consistent quality, and long-term reliability.
Service & Support in India
Technogen Enterprise provides strong service support across major industrial hubs including:
Ahmedabad, Mumbai, Delhi, Hyderabad, Bangalore, Chennai, Pune and other cities
Our expert team ensures installation, commissioning, training, and after-sales service to keep your production running smoothly.
FAQ:
Q1: What is an RFC water bottle filling machine?
It is a machine that performs rinsing, filling, and capping operations in a single integrated system.
Q2: What is the production capacity of this machine?
It ranges from 20 to 90 bottles per minute depending on the model.
Q3: Can it handle different bottle sizes?
Yes, it supports bottle sizes from 100 ml to 1000 ml.
